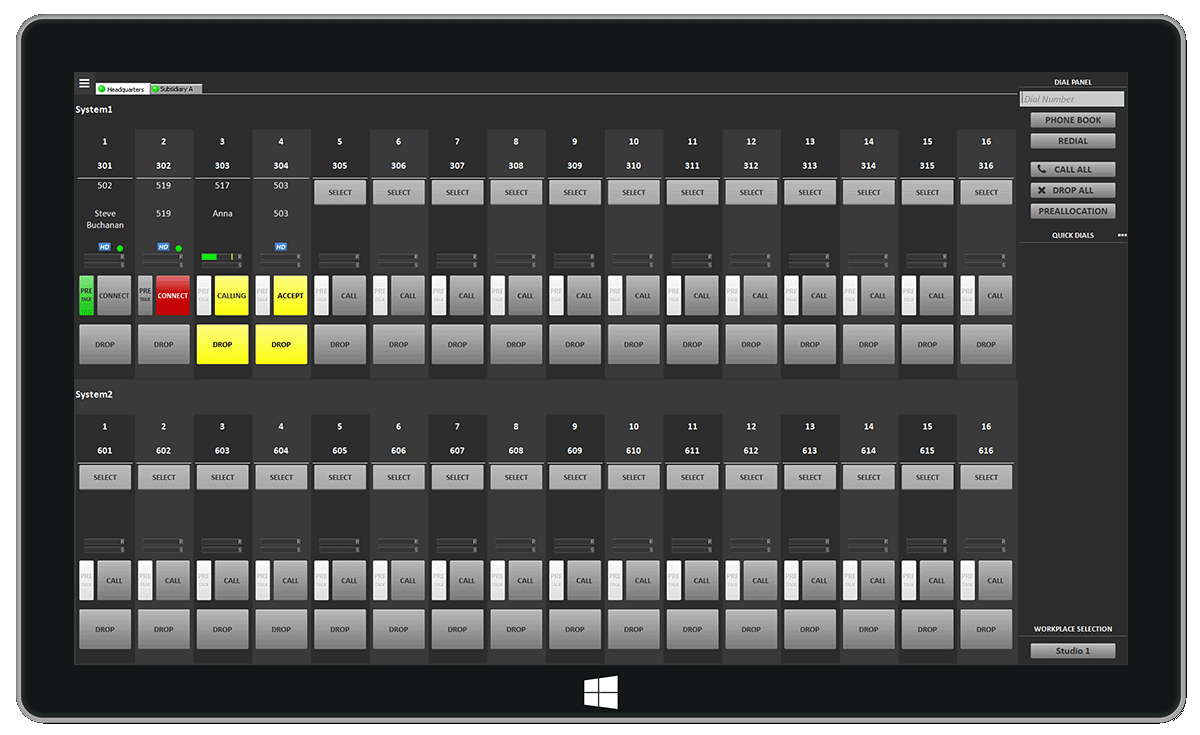

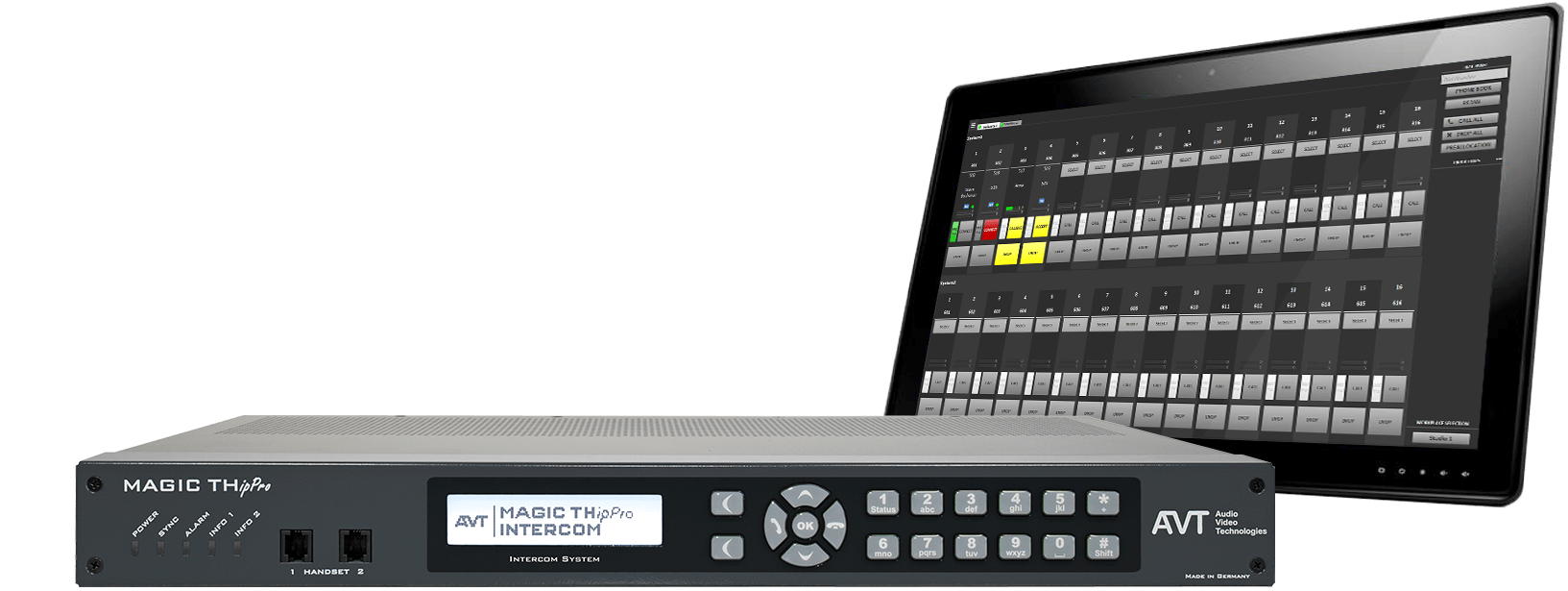

  • MAGIC THipPro Intercom with GUI
    MAGIC THipPro Intercom with GUI

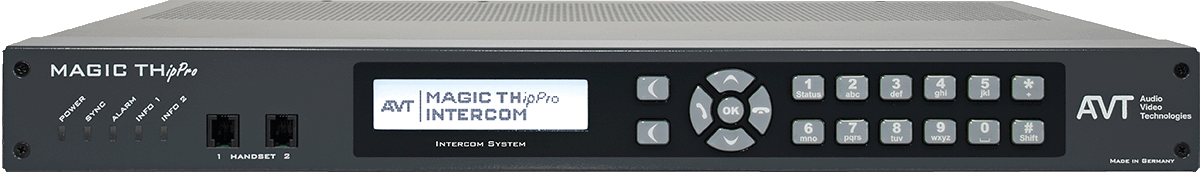

  • MAGIC THipPro Intercom Front
    MAGIC THipPro Intercom Front
  • MAGIC THipPro Intercom Front
    MAGIC THipPro Intercom Front

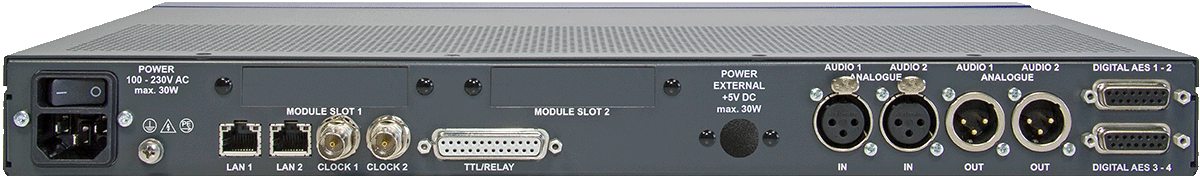

  • MAGIC THipPro Intercom Rear
    MAGIC THipPro Intercom Rear

We are happy to help!

We will be happy to advise you on our telephone hybrids, audio codecs and DAB/DAB+ systems.

CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
Image CAPTCHA
Enter the characters shown in the image.

Advice by telephone

+49 911 5271 - 0
(Monday – Friday: 9.00 Uhr – 16.00 CET)

E-Mail Contact

info [at] avt-nbg [dot] de

Product Details

The Intercom System is a DSP-based gateway, available in two versions: MAGIC THipPro 8 VoIP Intercom with 8 lines and MAGIC THipPro 16 VoIP Intercom with 16 lines, the 8-lines system can be extended to 16 lines by a hardware upgrade.
The 1U device has eight digital audio lines (four AES/EBU interfaces) and two analogue audio inputs and outputs in each version.

One licence for one workplace is already included in the delivery, additional licences for up to 20 workplaces (one license per system per workplace) are optionally available. The software allows the user to answer and dial calls and to see the receive and transmit Audio levels. A common SQL data base is available for all systems, all systems can use the same database. The application can control a maximum of ten devices.

Options

HD Voice

With the HD Voice (G.722) upgrade, connections can be established and received in 7 kHz audio quality.

AES67 Upgrade

AES67 is available as a software upgrade for all MAGIC THipPro telephone hybrids. The upgrade allows the use of eight additional audio channels (8 x RX (2 streams) and 8 x TX (1 stream)) via IP using AES67. AES67 is the lowest common denominator of several similar technologies and thus secures the communication between e.g. AES67-compatible Dante and Ravenna devices.

Dante Module

With the Dante/AES67 interface card for the MAGIC THipPro VoIP units, 32 audio inputs/outputs can be routed via IP to Dante® or AES67 compatible mixing consoles.
This feature includes two LAN interfaces for Dante®

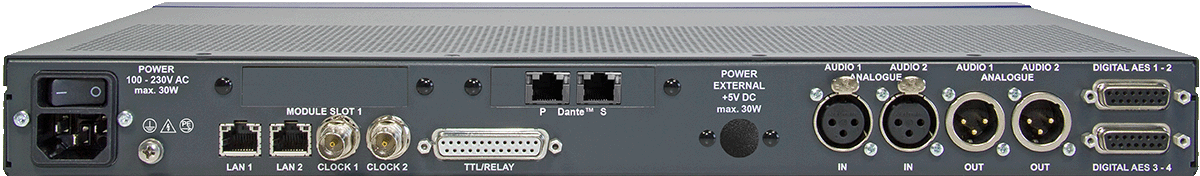

MAGIC THipPro Intercom with Dante

Ravenna Modul

With the Ravenna/AES67 interface card for the MAGIC THipPro VoIP units, 32 audio inputs/outputs can be routed via IP to Ravenna® or AES67 compatible mixing consoles.
The module already supports the NMOS specifications for Discovery & Registration and Device Connection Management, making integration into large AoIP networks much easier.

This feature includes two LAN interfaces for Ravenna®



MAGIC THipPro Intercom with Ravenna

Pretalk Streaming Upgrade

MAGIC THipPro VoIP Intercom also supports the Pretalk Streaming function. With this upgrade, the LAN connection between the system and the control PC can be used for pre-calls, so no additional audio cables need to be laid. A total of up to ten Pretalk Streaming licences can be activated, each of which can be assigned to a workplace.

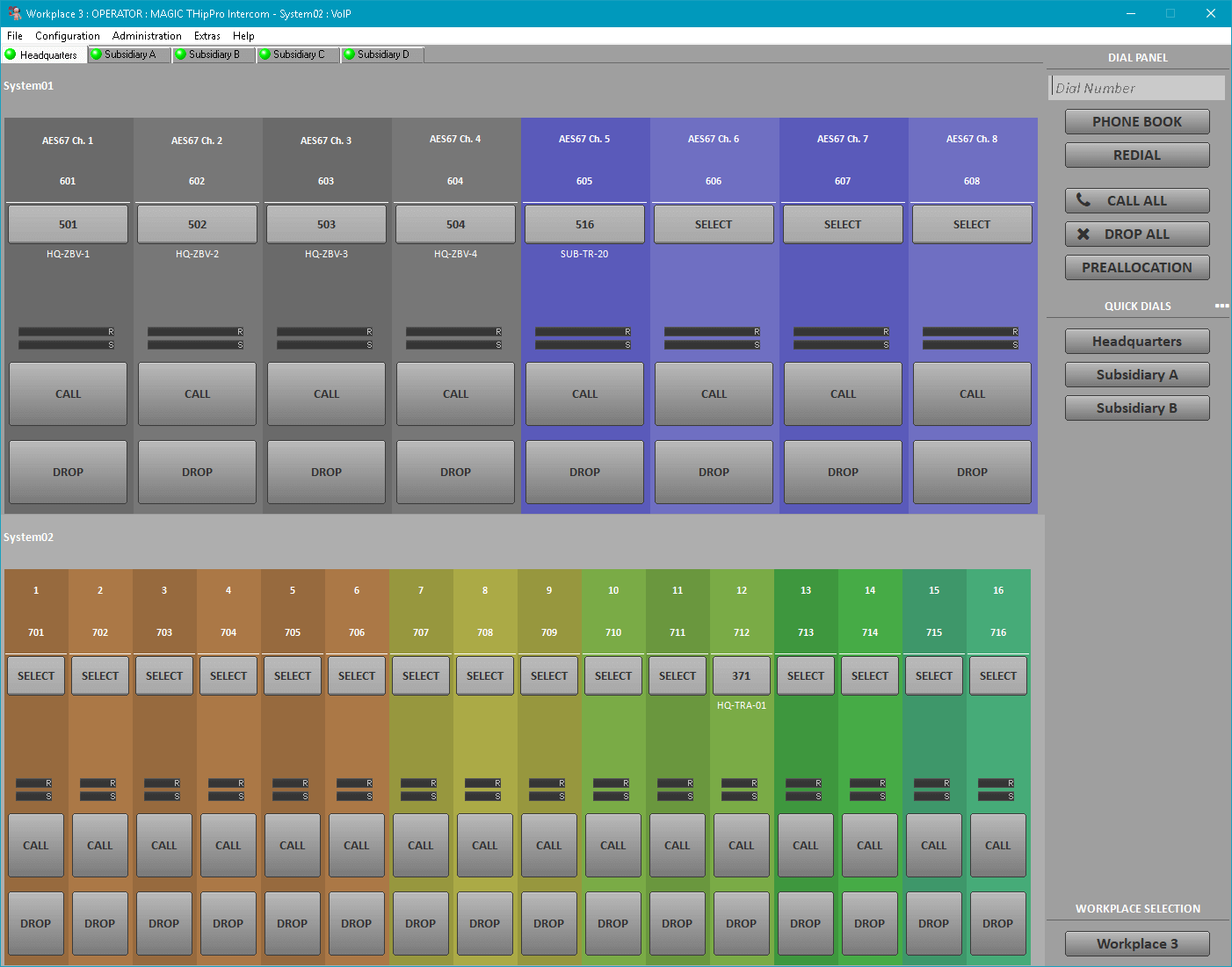

MAGIC THipPro Intercom Workplace Client

Configuration and control is done via one (or more) MAGIC THipPro Intercom Client(s). A maximum of 20 Intercom Clients can access a system, the first licence is already included in the delivery.



MAGIC THipPro Intercom Workplace Client

Redundant Power Supply

Optionally, a redundant power supply can be equipped. The 5V DC table power supply unit is included in this hardware upgrade.



MAGIC THipPro Intercom with redundant PSU
