Product Details

MAGIC PhonerSet enables convenient operation of the MAGIC telephone hybrid family (MAGIC TH2plus, MAGIC TH6, MAGIC THipPro Lite and MAGIC THipPro) via a touchscreen-enabled telephone. The telephone can be used parallel to the Windows PC software or independently without a PC. The connection for the control of all caller lines and the transmission of the audio signal takes place via a standard network interface.

MAGIC PhonerSet uses the caller lines of the used telephone hybrid system - an additional registration to a SIP server is not necessary.

The operation is based on the respective PC software of the telephone hybrid system. The following telephony functions are supported separately for each available caller line: Call setup, call accepting, hang up, redial, call transfer, PRETALK, HOLD, ON AIR (1-fader or 2-fader mode) and line blocking (LOCK).Further functions are available via the Function key: Lock/Unlock all lines (LOCK ALL), hang up all lines (DROP ALL) and Call List.

MAGIC TH2plus allows the simultaneous use of up to two, MAGIC TH6 up to six and MAGIC THipPro Lite and MAGIC THipPro up to eight MAGIC PhonerSet workplaces - parallel to the respective Windows PC software editions MAGIC TH2plus/MAGIC TH6 Control and MAGIC THipPro LAN/SCREENER.
MAGIC Server Basic supports 8 PhonerSets, while MAGIC Server Professional supports 48 PhonerSets.

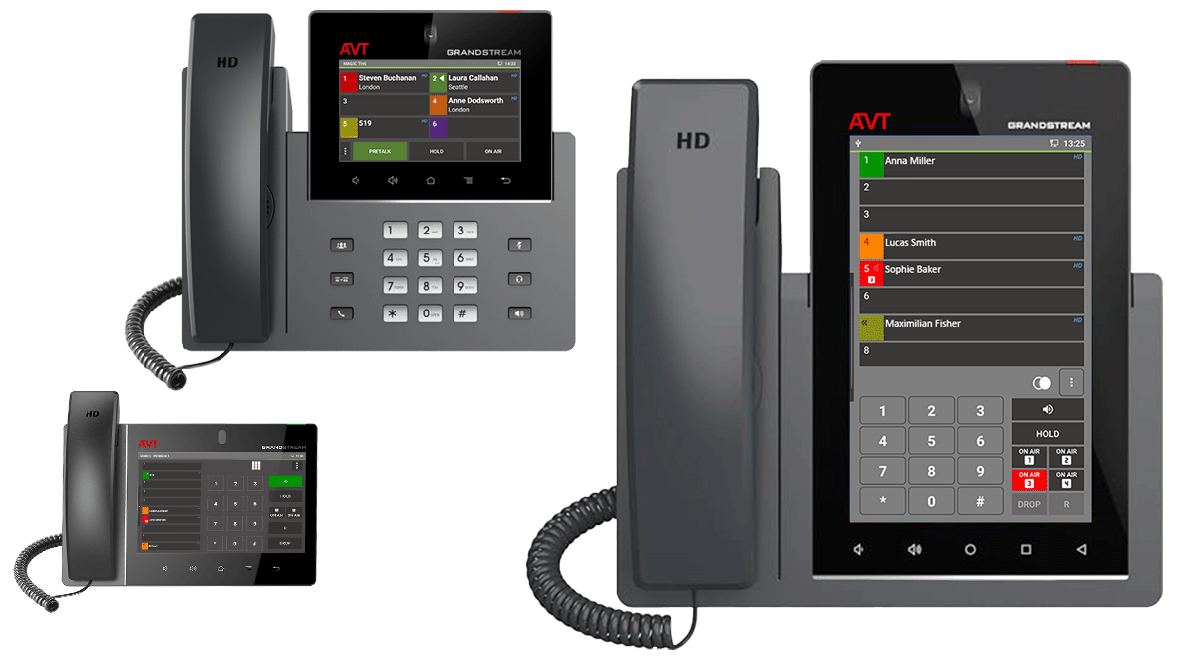

In Germany the MAGIC PhonerSet is available for purchase based on the devices GRANDSTREAM GXV3350, GXV3370 and GXV3380.
Outside of Germany we offer the MAGIC PhonerSet licence without hardware for use with one of these models.
The desired Grandstream device is procured locally to save shipping cost, facilitate warranty handling and guarantee delivery of the appropriate power supply. The MAGIC PhonerSet licence is always licensed to the Telephone Hybrid and supports one device each.

Options

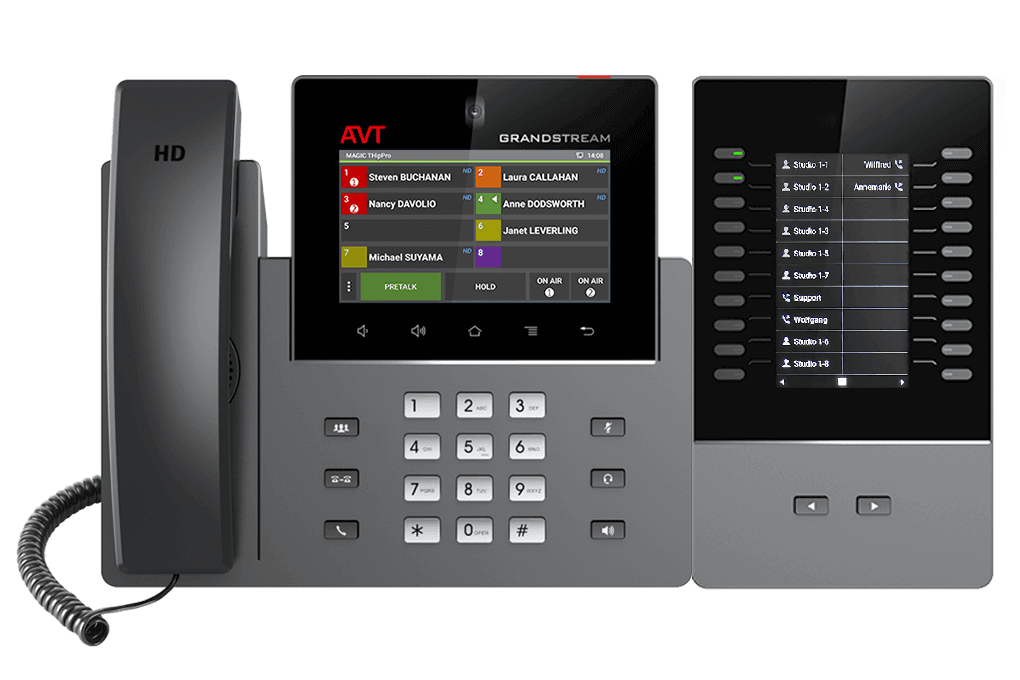

MAGIC PhonerSet 5'' Extension LCD Keypad

For the MAGIC PhonerSet with 5'' display and keyboard an additional extension module with speed-dial keys is available.
The module has a 4.3'' (272 x 480 pixel) color LCD display for showing the contacts.

MAGIC PhonerSet 5'' Extension LCD Keypad
