MAGIC PhonerSet

08.12.2019

MAGIC PhonerSet enables convenient operation of the MAGIC telephone hybrid family (MAGIC TH2plus, MAGIC TH6 and MAGIC THipPro) via a touchscreen-enabled telephone.

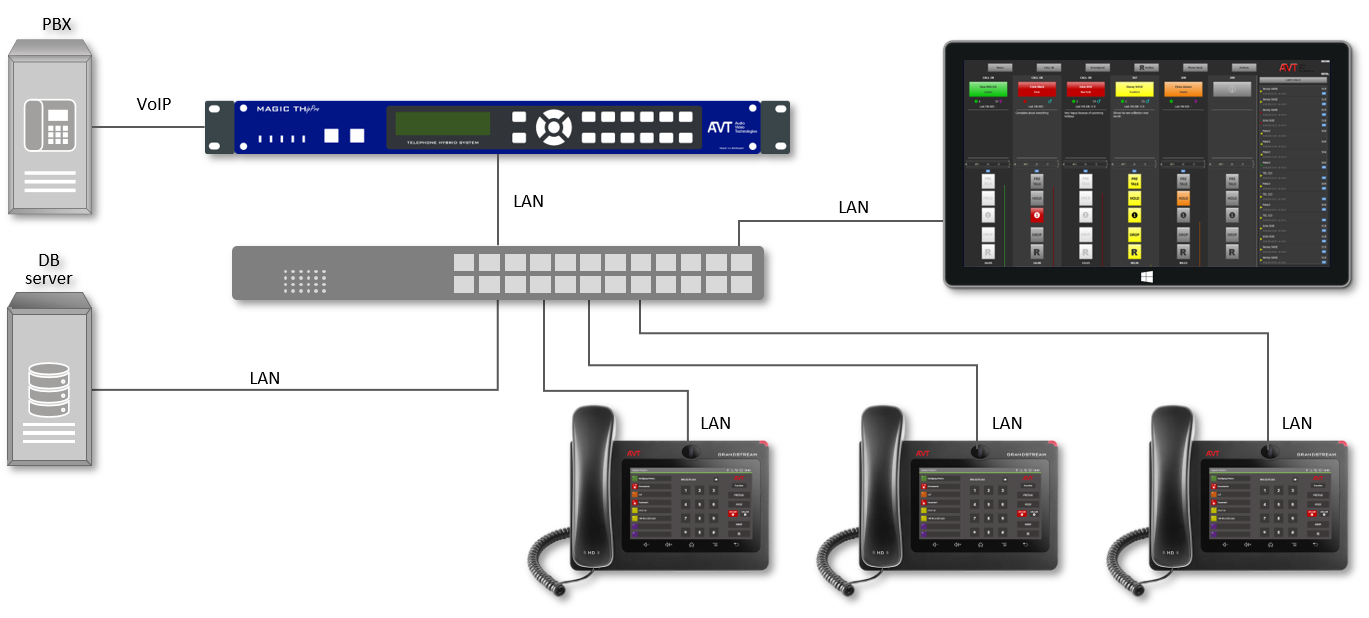

The telephone can be used parallel to the Windows PC software or independently without a PC. The connection for the control of all caller lines and the transmission of the audio signal takes place via a standard network interface. MAGIC PhonerSet uses the caller lines of the used telephone hybrid system - an additional registration to a SIP server is not necessary.

The operation is based on the respective PC software of the telephone hybrid system.

  • The following telephony functions are supported separately for each available caller line: Call setup, call acceptance, hang up, redial, call transfer, PRETALK, HOLD, ON AIR (1-fader or 2-fader mode) and line blocking (LOCK).
  • Further functions are available via the Function key: Lock/Unlock all lines (LOCK ALL), hang up all lines (DROP ALL) and Call List.

The status and caller information of each line are displayed via line cards. Depending on the number of lines, the following information can be displayed: Phone number/SIP Display name, caller name and city (only if database is activated). Of course, Unicode characters (UTF-8) are also supported, so that, for example, Cyrillic or Arabic caller information can be displayed without problems.

The usable lines and authorisations (e.g. switching to ON AIR) of an operator workplace are automatically assigned via the system configuration of the telephone hybrid system. Only the connection parameters to the telephone hybrid system must be entered at the MAGIC PhonerSet.

The HDMI interface also enables parallel output of the user interface on an external screen. MAGIC TH2plus allows the simultaneous use of up to two, MAGIC TH6 and MAGIC THipPro of up to six MAGIC PhonerSet workplaces - parallel to the respective Windows PC software editions MAGIC TH2plus/MAGIC TH6 Control and MAGIC THipPro LAN/SCREENER.
